Biolum, ATP monitoring system
Swab, ATP, Cleanliness, Bioluminescence

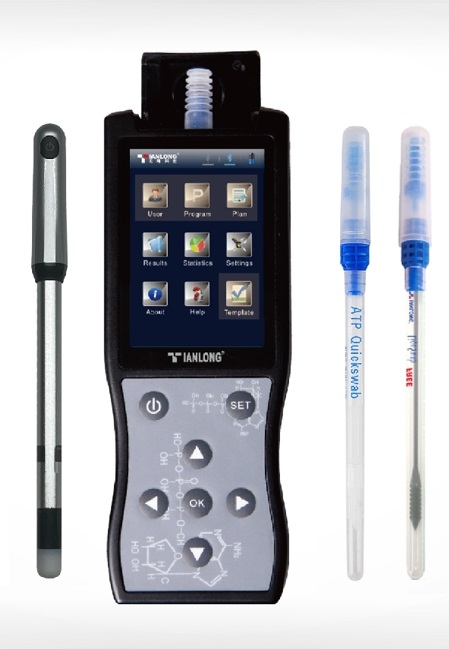

Biolum Portable ATP Hygiene Monitoring System, a powerful tool for implementing and managing your hygiene monitoring program.
Taking advantages of the progressive testing swab, the hygiene level will be evaluated in seconds, and the results can be visualized on screen.
Featuring the state-of-art technology, the Biolum is a user-friendly, flexible, and accurate quality monitoring system.
It has all the features to maximize its value to your business.

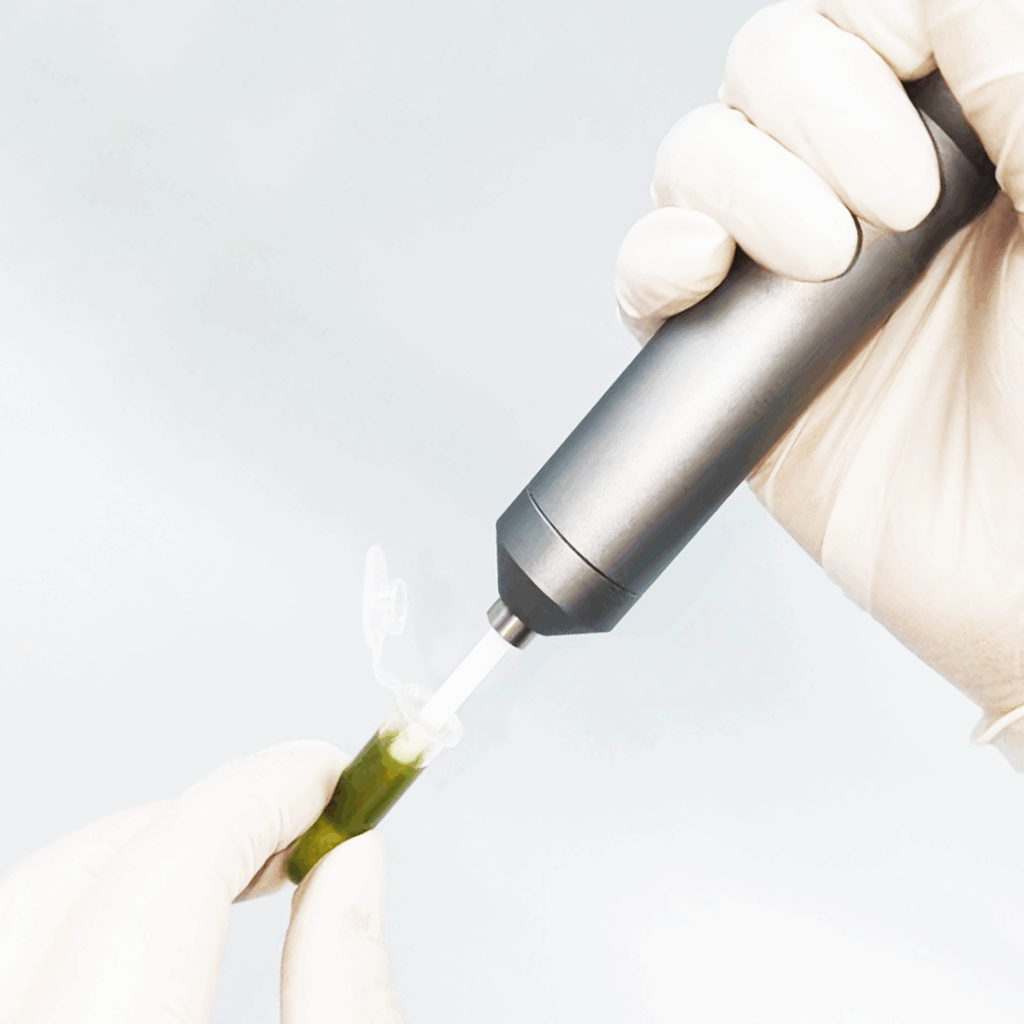

Biolum Portable ATP Hygiene Monitoring System produced provides a bioluminescence assay for monitoring hygiene and cleanliness standards when used with ATP Test Swabs (e.g., ATP QuickSwab). Our ATP swabs are pen-sized sampling device that contain recombinant luciferase reagent for detecting the amount of ATP on the basis of admitted fluorescence and to generate visualized results in the form of relative light units (RLUs).
Performance:
| model | Biolum |
|---|---|
| dimension | 189 mm x 70 mm x 35 mm |
| weight | 280 g |
| detection limit | 10⁻¹⁶ moles ATP |
| detection deviation | ±5% or ±5 RLUs |
| self-calibration at startup | 15 s or 60 s |
| detection time | 10 s/test |
| memory capacity | 256 test plans, 256 user IDs, 2000 test programs, 10,000 results |
| communication interface | USB, Bluetooth |
| repeatability | R² > 0.995 |
| correlation coefficient | R² > 0.99% |
| power supply | Rechargeable battery |
| running time | >8 hrs continuous use, >600 hrs standby |
| operation temperature range | -5 ~ 40°C |
| operation humidity range | 20–80% RH |
Swab:
| cat. no. | swab | specification | remark |
|---|---|---|---|
| A017H | QuickSwab | 20 pieces/package | Surface test |
| A010H | LiquSwab Total | 20 pieces/package | Liquid test (Total ATP) |
| A011H | LiquSwab Free | 20 pieces/package | Liquid test (Free ATP) |
